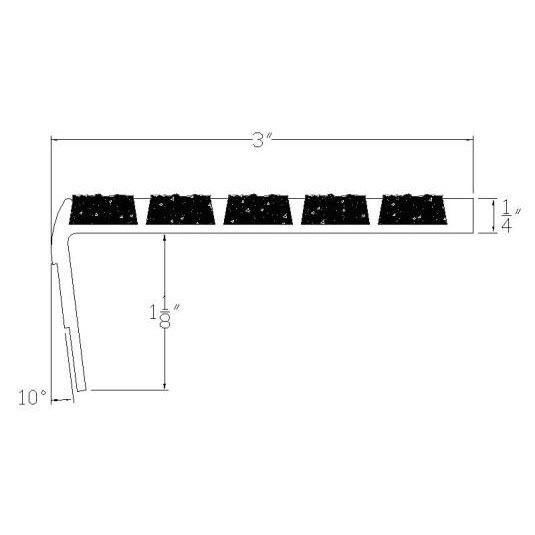

Dimensions
3″ wide x 1/4″ thick
Product Description
Type 138 is 3″ wide x 1/4″ thick with a nose depth of 1 1/8″. Designed for sloped risers, lengths are made to order. The maximum length in one piece is 12 feet 0 inches. Longer lengths will be made in equal sections.
Available in standard Supergrit® colors
Provided with drilled and countersunk holes for wing anchors (wet concrete), tapcon screws (existing concrete), or stainless steel wood screws. If existing concrete or wood, the nosing must be installed flush with the walking surface.
