132_Approval
132_Spec_Sheet

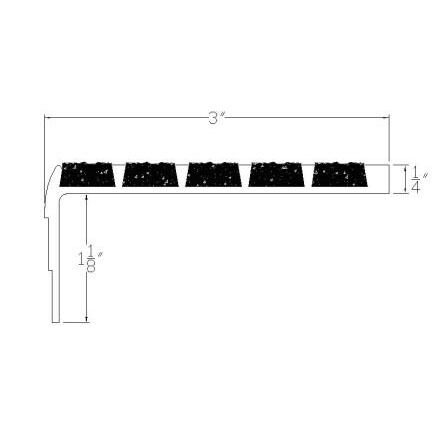

Dimensions
3″ wide x 1/4″ thick

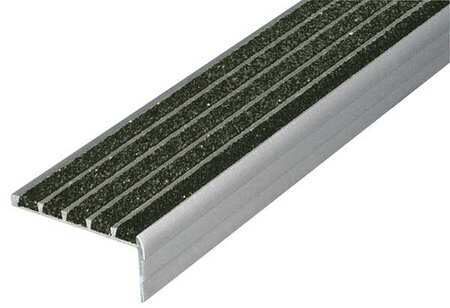

Product Description
Type 132 is 3″ wide x 1/4″ thick (Nose 1 1/8″ underside). Lengths are made to order. Maximum length in one piece is 12’0″. Longer lengths will be made in equal sections.
Available in standard Supergrit® colors
Provided with drilled and countersunk holes for wing anchors (wet concrete), tapcon screws (existing concrete), or stainless steel wood screws. If existing concrete or wood, the nosing must be installed flush with the walking surface.
