WP24-NG_Spec_Sheet

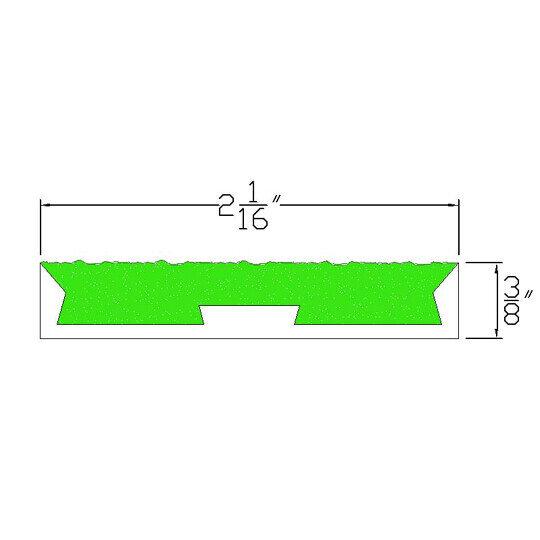

Dimensions
2-1/16″ wide x 3/8″ thick

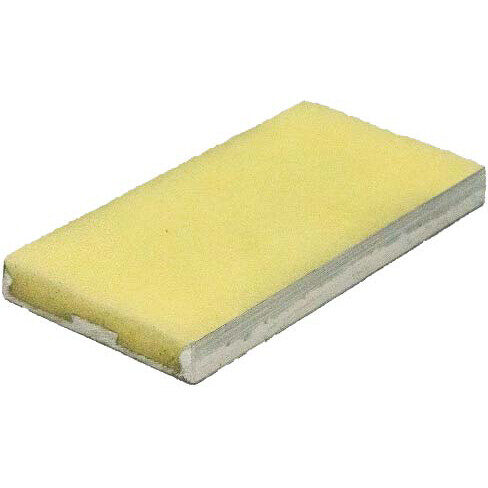

Product Description
Type WP24-NG is 2-1/16″ wide x 3/8″ thick. Lengths are made to order. Maximum length is 8’0″ in one section (over 8’0″ will be made in equal sections).
Provided with abrasive NITEGLOW (glow-in-the-dark) filler in an extruded aluminum base.
Provided with drilled and countersunk holes for wing anchors (wet concrete), tapcon screws (existing concrete), or stainless steel wood screws. If existing concrete or wood, the nosing must be installed flush with the walking surface.
