105B_Spec_Sheet
Dimensions
Width options include: 3″, 4″, 5″, 6″, 7″, 8″, 9″, 10″, 11″, or 12″. Thickness options include: 5/16″, 3/8″, 1/2″, or 5/8″
Product Description
Type 105B provided in ALUMOGRIT® (cast aluminum) Its chief use is as structural treads. Nosing and toeplate can be drilled for attaching flat plate risers, when specified. End lugs are provided for bolting directly to the stringer. Sizes are made to order.

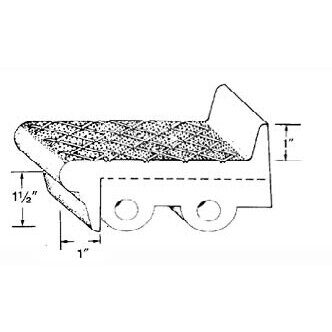

Nose 1″ x 1 1/2″ – Toeplate 1″ / Chief use: as structural treads. Nosing and toe plate can be drilled for attaching the flat plate.
